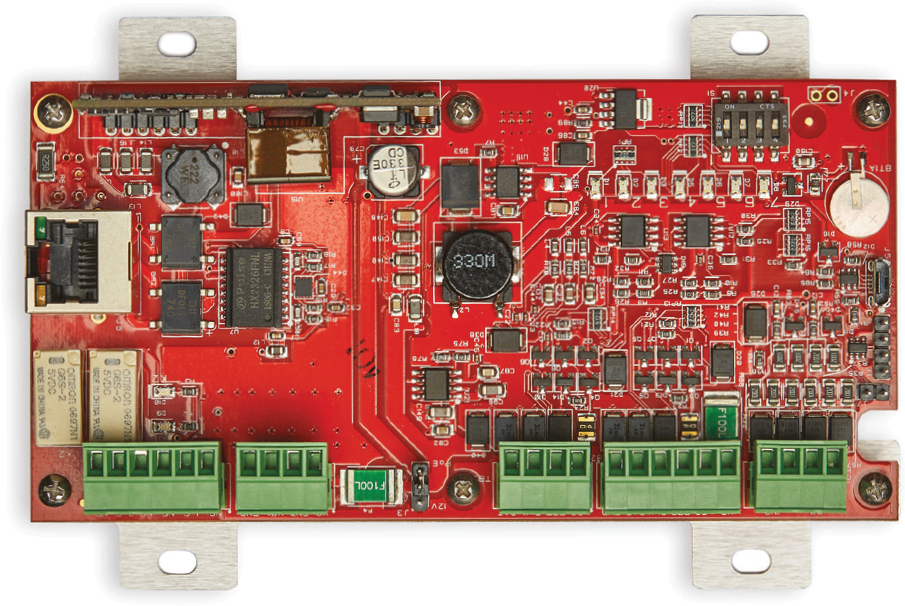

LP1501 PoE Door Controller (ADC-AC-LP1501)

LP1501 PoE Door Controller (ADC-AC-LP1501)

Regular price$571.41

  • In stock, ready to ship
  • Inventory on the way
Smarter Access Control is a powerful, easy-to-use solution for businesses ranging from small shops to large commercial properties. Designed for high-traffic business environments, the LP1501 PoE Door Controller (ADC-AC-LP1501) can manage large numbers of users with complicated access schedules. Plus, Alarm.com makes it easy to lock or unlock doors and manage users from anywhere.


  • PoE, PoE+ or 12V DC input power
  • Two reader inputs
  • Support for eight expansion modules and up to 17 readers
  • Two relay outputs
  • Two programmable inputs


  • Scan-to-add card format and serial detection
  • Control doors and manage users from the Alarm.com app
  • Integrated Alarm.com intrusion and video offerings
  • User-friendly, flexible scheduling
  • Configure hardware using web or app for easy installation
  • Plug & play installation — no networking expertise required


Input Power PoE, PoE+, or 12 VDC, 550mA max
Output Power
  • PoE: 12 VDC @ 625 mA including reader and auxiliary power output
  • PoE+ or external 12 VDC: 12 VDC @ 1.25 A  including reader and auxiliary power output
Inputs One dedicated reader input, one switchable reader/two-wire RS-485 input,
two programmable inputs, one dedicated tamper input
Outputs Two relay outputs (2A @ 30V DC), single-wire LED control, single-wire buzzer output

HSPD-12/FIPS201 compliant, CE compliant, UL 294 and UL 294B recognized, RoHS, FCC Part 15 Class A, NIST certified encryption

Dimensions (L x W x H)

Without bracket: 5.5 x 2.75 x 0.96” (140 x 70 x 24 mm),

With bracket: 5.5 x 3.63 x 1.33” (140 x 92 x 34 mm)


32°F - 158°F (0 - 70°C) operational

-67°F - 185°F (-55 - 85°C) storage

Operating Humidity 5-95% (non-condensing) RH
